HELULIGHT® POWER-RGBW 840
- Technical Details
- Product information
- application areas
| Item Number: | 11024089 |
|---|---|
| catalog number: | 1-000000-06929 |
| Light Colour: | 5.000 K |
| Main supply: | 24 VDC |
| Dimmable: | yes, external PWM |
| Protection class: | 3 |
| Power: | 51,7 W (RGBW) |
| Colour Rendering: | Ra / CRI ≥ 80 |
| Operating Temp: | -20°C / +45°C |
| Lifetime: | 60.000h |
| Optics: | 100° |
| Connection Type : | M12 5pol. a-codiert |
| Housing: | Aluminium |
| Fastening: | Starr |

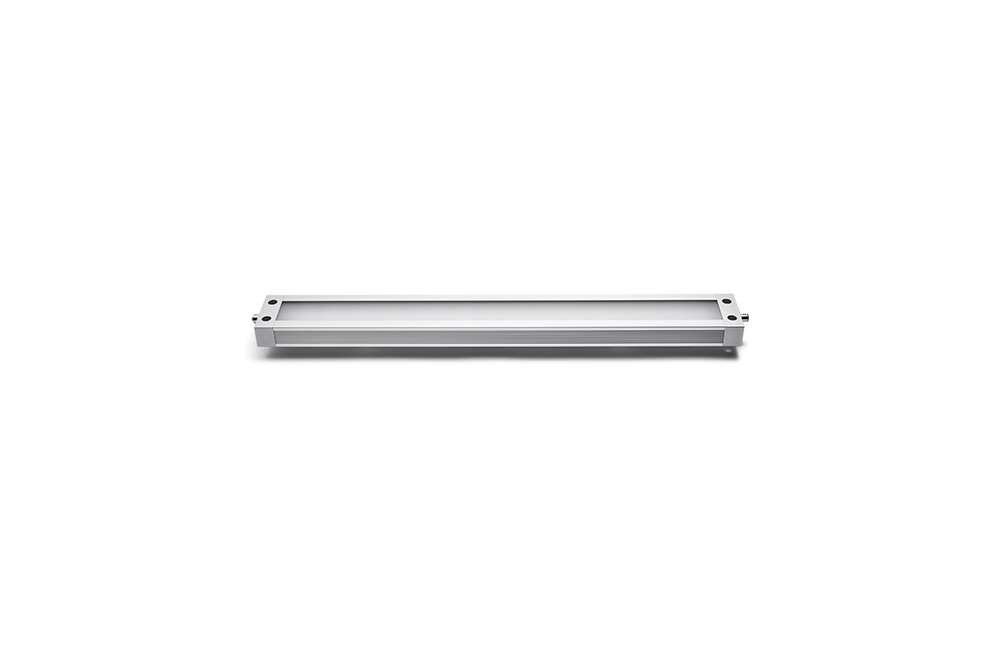

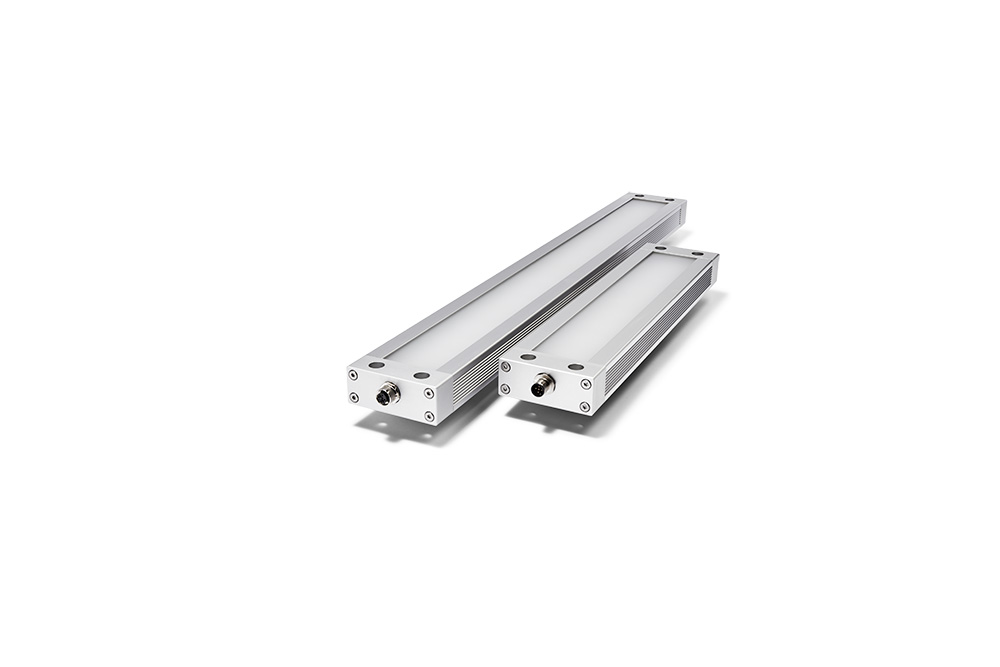

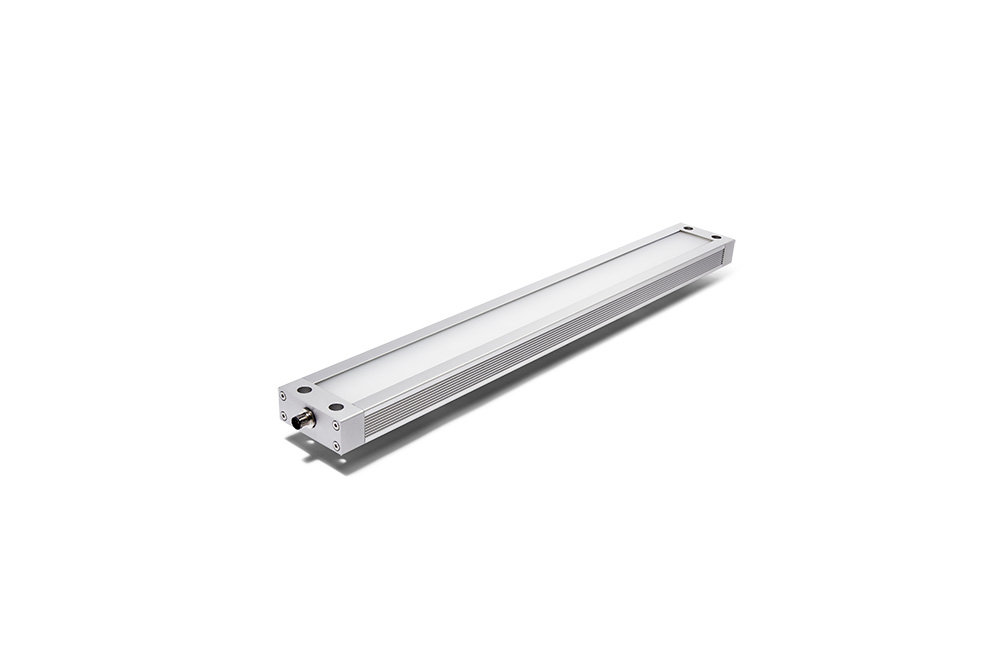

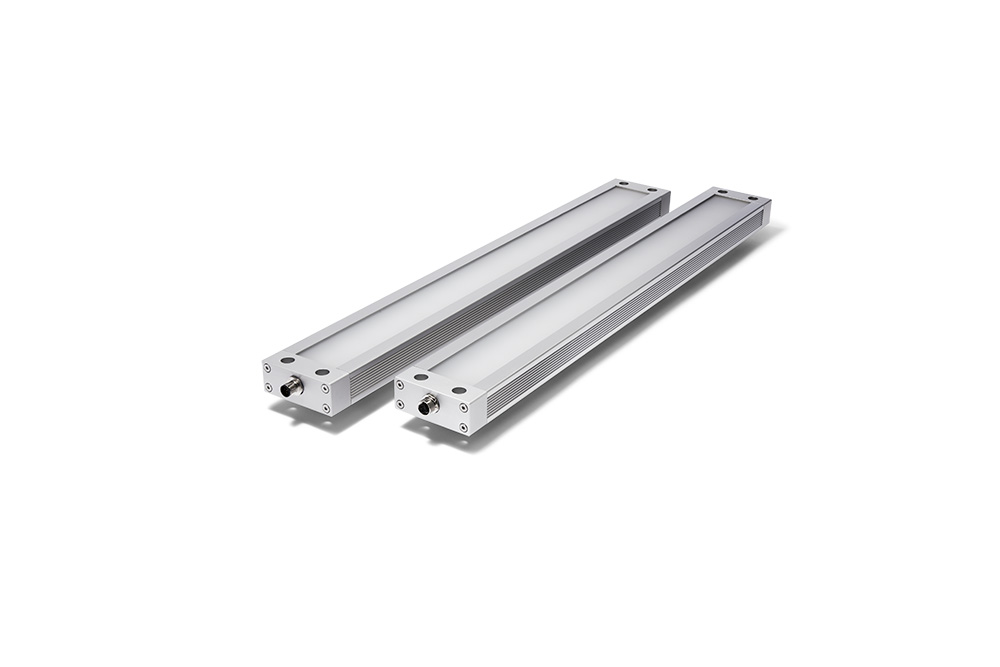

Product information "HELULIGHT® POWER-RGBW 840"
Our HELULIGHT® POWER-RGBW is a combination of illumination and signalling, strong homogeneous RGB illumination over a large-area light pattern, protection class IP40 - designed for use at assembly workstations and industrial environments both on and in machines.
| Connection Type: | loop through, not loop through |
|---|---|
| Cover: | PMMA diffuse |
| Lengths: | 280 mm, 560 mm, 840 mm, 1120 mm, 1400 mm |
| Light Color: | RGBW |
| Lumen (White): | 1575 lm, 3150 lm, 4726 lm, 6301 lm, 7874 lm |
| Power (White): | 38,7 W, 77,5 W, 116,2 W, 155,0 W, 193,5 W |
| IP-Schutzart: | IP40 |
| Zulassung: | CE, D, SK3, UKCA |
- status indication, condition indication, filling level indication
- machine room lighting
- workstation lighting
