HELULIGHT® DUAL-W-RGB 840
- Technical Details
- Product information
- application areas
| Item Number: | 11024152 |
|---|---|
| catalog number: | 1-000000-07439 |
| Light Colour: | 5.700 K |
| Main supply: | 24 VDC |
| Dimmable: | yes, external PWM |
| Protection class: | 3 |
| Power: | 20,3 W (RGBW) |
| Colour Rendering: | Ra / CRI ≥ 80 |
| Operating Temp: | -20°C / +45°C |
| Lifetime: | 60.000 h |
| Optics: | 90° |
| Connection Type : | M12 5pol. a-codiert |
| Housing: | Aluminium |
| Fastening: | Starr |

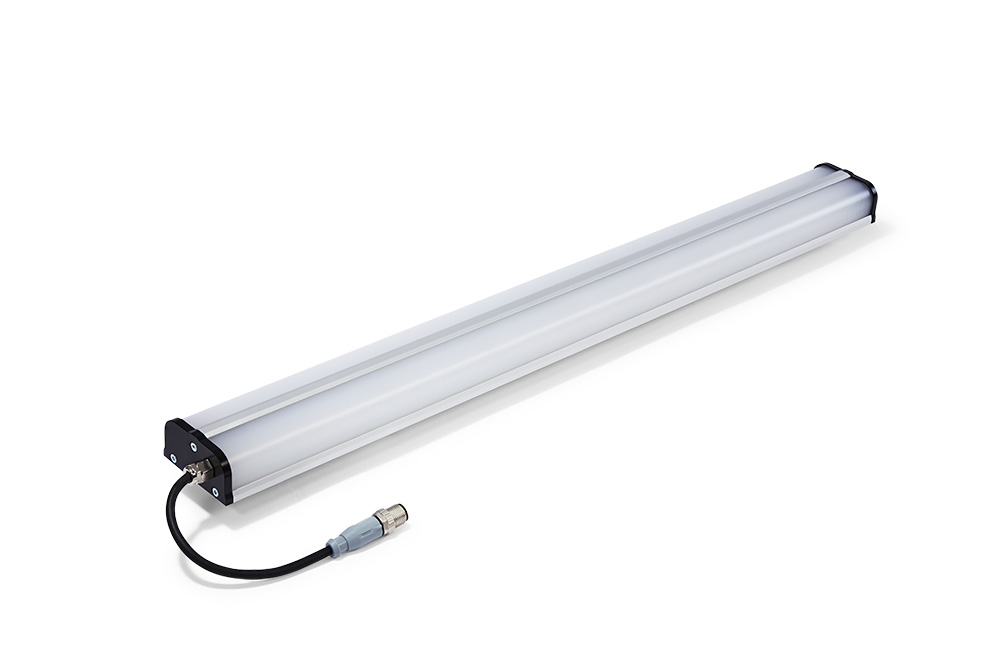

Product information "HELULIGHT® DUAL-W-RGB 840"
Our HELULIGHT® DUAL – simultaneous lighting and signalling. The HELULIGHT® DUAL enables simultaneous lighting and signalling in and on machines, making it unique on the market. With its dual-chamber system, large areas inside machines can be illuminated while the machine operator is kept constantly informed of the current status of the machine – without being dazzled by white light. The main advantage over conventional RGBW lights is that the interior of the machine is always illuminated during signalling.
| Connection Type: | not loop through |
|---|---|
| Cover: | PC |
| Lengths: | 280 mm, 560 mm, 840 mm |
| Light Color: | W |
| Lumen (White): | 1206 lm, 2412 lm, 3618 lm |
| Power (White): | 12,0 W, 23,6 W, 35,6 W |
| IP-Schutzart: | IP54 |
| Zulassung: | CE, D, SK3, UKCA |
- Simultaneously illuminate and signalise status display
- status indicator, fill level indicator
- Machine room lighting
- Packaging machines
