HELULIGHT® CLASSIC-RGBW 840D
- Technical Details
- Product information
- application areas
| Item Number: | 11024061 |
|---|---|
| catalog number: | 1-000000-07039 |
| Light Colour: | 5.000 K |
| Main supply: | 24 VDC |
| Dimmable: | yes, external PWM |
| Protection class: | 3 |
| Power: | 20,3 W (RGBW) |
| Colour Rendering: | Ra / CRI ≥ 80 |
| Operating Temp: | -20°C / +45°C |
| Lifetime: | 60.000 h |
| Optics: | 120° |
| Connection Type : | M8 5pol. b-codiert |
| Housing: | Aluminium |
| Fastening: | Drehbar |
Product information "HELULIGHT® CLASSIC-RGBW 840D"
The features of our HELULIGHT® CLASSIC and HELULIGHT® CLASSIC-RGB combined in one luminaire. OurHELULIGHT® CLASSIC-RGBW luminaire impresses on the one hand with its design for powerful all-round illumination of machine rooms and on the other hand has a signalling function by changing the light colour.

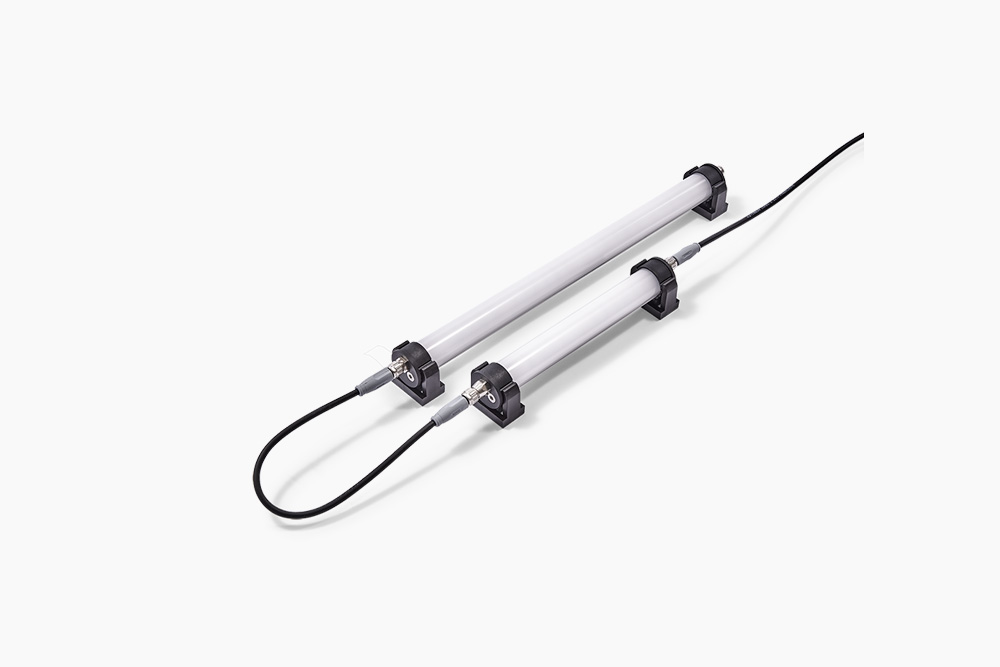

| Connection Type: | loop through, not loop through |
|---|---|
| Cover: | PMMA diffuse |
| Lengths: | 140 mm, 280 mm, 560 mm, 840 mm, 1120 mm, 1400 mm |
| Light Color: | RGBW |
| Lumen (White): | 276 lm, 552 lm, 1105 lm, 1657 lm, 2209 lm, 2761 lm |
| Power (White): | 6,0 W, 11,9 W, 23,8 W, 35,7 W, 47,6 W, 59,5 W |
| IP-Schutzart: | IP54 |
| Zulassung: | CE, D, SK3, UKCA, UL |
- status indication, condition indication, filling level indication
- machine room lighting
- Working areas with limited space
