HELULIGHT® STATIC-RGBW 420D
- Technical Details
- Product information
- application areas
| Item Number: | 11029496 |
|---|---|
| catalog number: | 1-000000-07647 |
| Light Colour: | 5.700K |
| Main supply: | 24 VDC |
| Dimmable: | yes, external PWM |
| Protection class: | 3 |
| Power: | 12,9 W |
| Colour Rendering: | Ra / CRI ≥ 80 |
| Operating Temp: | -20°C / +45°C |
| Lifetime: | 60.000h |
| Optics: | 100° |
| Connection Type : | M8 4pol. a-codiert |
| Housing: | Aluminium |
| Fastening: | Starr |

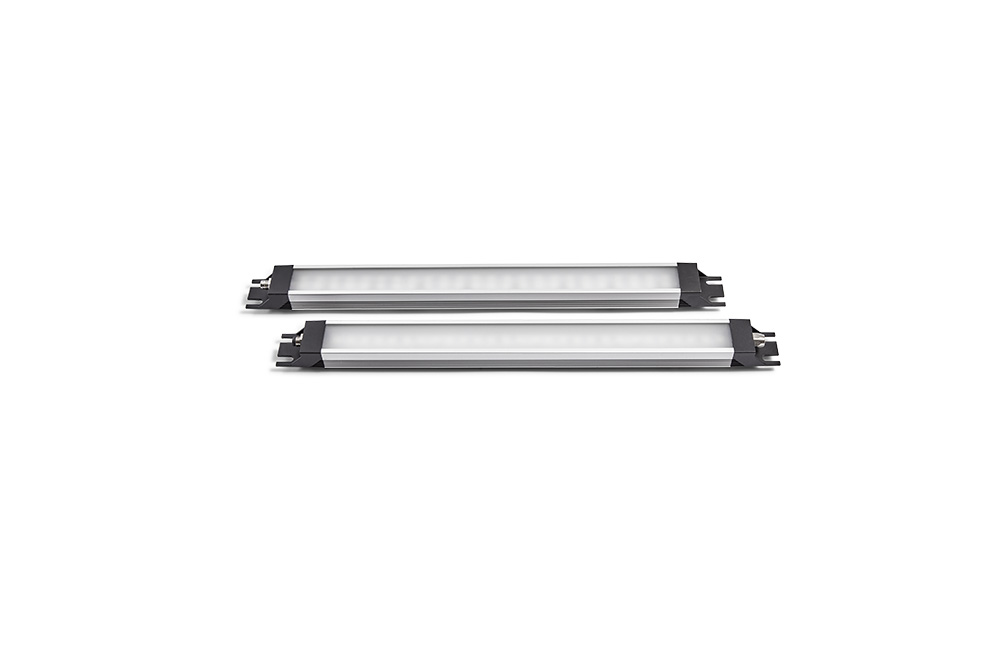

Product information "HELULIGHT® STATIC-RGBW 420D"
The features of our HELULIGHT® STATIC are supplemented by the signalling function of an RGB luminaire.
Our HELULIGHT® STATIC-RGBW luminaire for illuminating and signalling is suitable for use in many industrial applications thanks to its vibration resistance, slim design and simple installation.
| Connection Type: | loop through, not loop through |
|---|---|
| Cover: | PMMA diffuse |
| Lengths: | 140 mm, 280 mm, 420 mm, 560 mm, 840 mm, 1120 mm, 1400 mm |
| Light Color: | RGBW |
| Lumen (White): | 483 lm, 672 lm, 966 lm, 1932 lm, 2899 lm, 3865 lm, 4830 lm |
| Power (White): | 9,6 W, 12,9 W, 19,4 W, 38,7 W, 58,1 W, 77,5 W, 96,9 W |
| IP-Schutzart: | IP40 |
| Zulassung: | CE, D, SK3, UKCA, UL |
- status indication, condition indication, filling level indication
- work areas with limited space
- machine room lighting
