HELULIGHT® CLASSIC-PLUS 560
- Technical Details
- Product information
- application areas
| Item Number: | 11029455 |
|---|---|
| catalog number: | 1-000000-07555 |
| Light Colour: | 5.700K |
| Main supply: | 12-30 VDC |
| Dimmable: | yes, intern 0-10V |
| Protection class: | 3 |
| Power: | 13,8 W |
| Colour Rendering: | Ra / CRI ≥ 80 |
| Operating Temp: | -20°C / +50°C |
| Lifetime: | 60.000h |
| Optics: | 120° |
| Connection Type : | M8 4pol. a-codiert |
| Housing: | Aluminium |
| Fastening: | Drehbar |

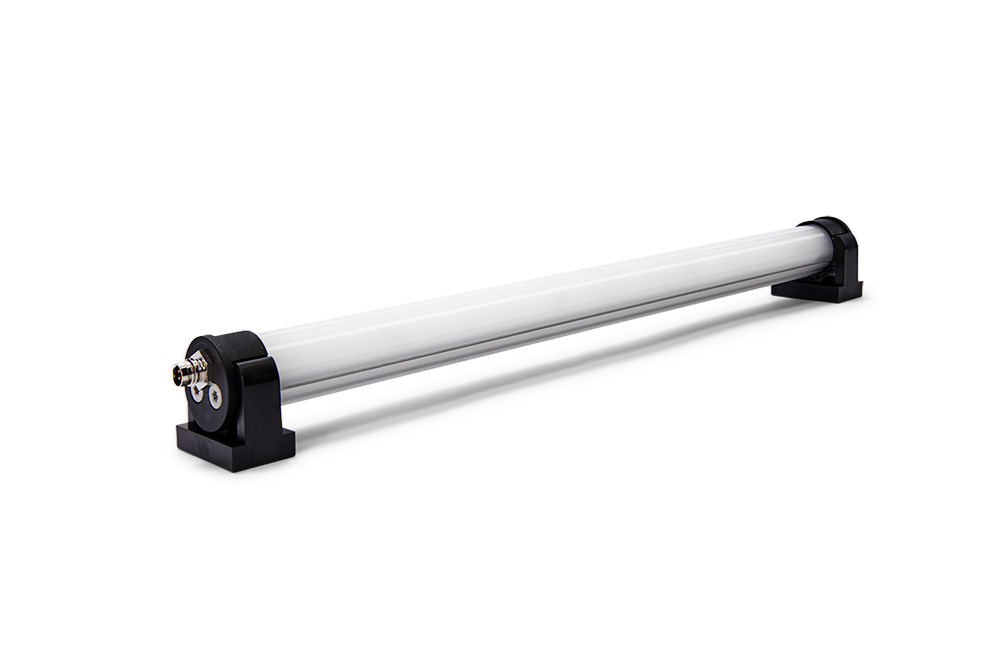

Product information "HELULIGHT® CLASSIC-PLUS 560"
The HELULIGHT® CLASSIC-PLUS offers 10% more light with the same output compared to our standard version, is infinitely dimmable and has a flexible voltage range of 12-30V - ideal for applications in work areas with limited space. The M8 connector ensures a fast and flexible connection.
| Connection Type: | loop through, not loop through |
|---|---|
| Cover: | PMMA diffuse |
| Lengths: | 140 mm, 280 mm, 420 mm, 560 mm, 700 mm, 840 mm, 980 mm, 1120 mm, 1400 mm |
| Light Color: | W |
| Lumen (White): | 410 lm, 819 lm, 1229 lm, 1639 lm, 2048 lm, 2458 lm, 2868 lm, 3277 lm, 4097 lm |
| Power (White): | 3,4 W, 6,9 W, 10,3 W, 13,8 W, 17,2 W, 20,6 W, 24,1 W, 27,5 W, 34,4 W |
| IP-Schutzart: | IP54 |
| Zulassung: | CE, D, SK3, UKCA, UL |
- Work areas with little space
