LED KL 105 ESGd-M8-57
- Technical Details
- Product information
- application areas
| Item Number: | 11024108 |
|---|---|
| catalog number: | 1-000000-06151 |
| Light Colour: | 5.700 K |
| IP protection class: | IP67 |
| Main supply: | 24 VDC |
| Dimmable: | yes, external PWM |
| Protection class: | 3 |
| Power: | 3,3 W |
| Colour Rendering: | Ra / CRI ≥ 80 |
| Operating Temp: | -20°C / +50°C |
| Lifetime: | 60.000 h |
| Optics: | 100° |
| Connection Type : | M8 4pol. a-codiert |
| Housing: | Aluminium |
| Fastening: | Starr |
Product information "LED KL 105 ESGd-M8-57"

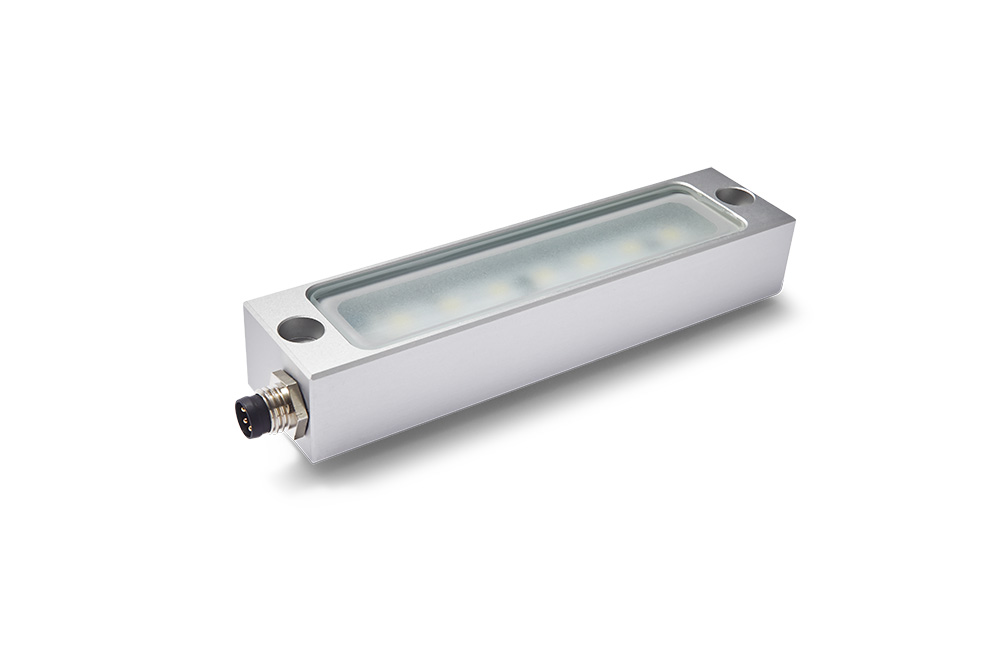

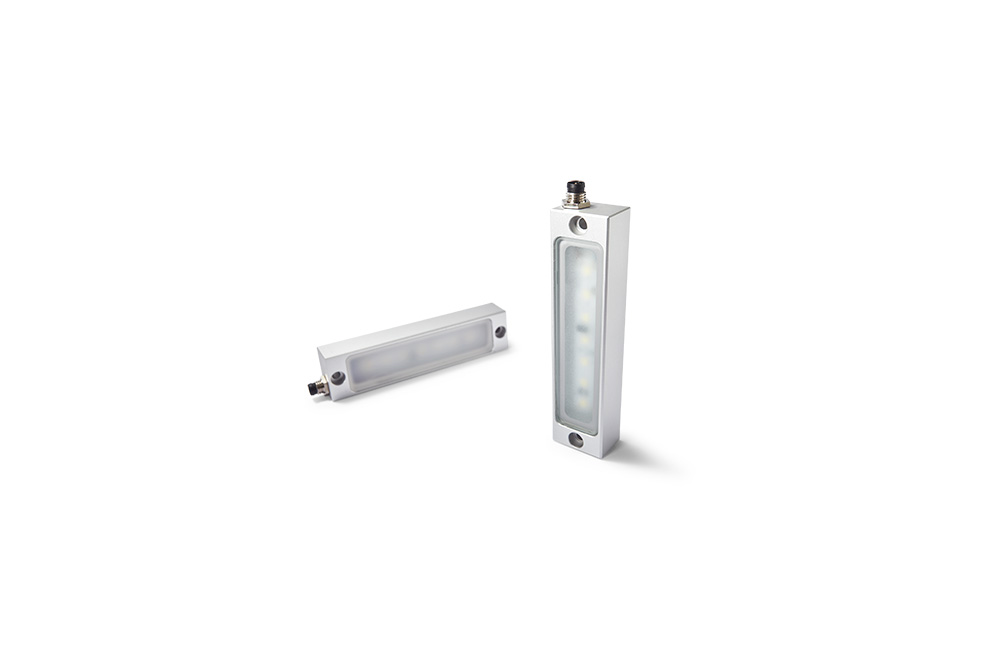

Our HELULIGHT® KL – compact and extremely robust. With features such as IP67, safety glass and resistance to cooling lubricants and oils, it was developed for use in harsh environmental conditions with limited space. This makes the HELULIGHT® KL ideal for use in machine tools. Despite its small design, it provides powerful and precise illumination thanks to efficient LED technology and good heat management.
| Connection Type: | not loop through |
|---|---|
| Cover: | ESG diffuse, PMMA diffuse |
| Lengths: | 105 mm |
| Lumen (White): | 381 lm, 401 lm |
| Power (White): | 3,3 W |
• Suitable for the roughest applications
• Work areas with little space
• Work areas with little space
